Fast Wrap Around Labeller Mineral Water Bottle Labeling Machine 110V

Name: Fast Wrap Around Labeller Mineral Water Bottle Labeling Machine 110V
Brand: YIMU
Price: 1 USD

Buy cheap Fast Wrap Around Labeller Mineral Water Bottle Labeling Machine 110V product

Brand Name : YIMU

Model Number : YM510

Certification : CE

Place of Origin : Shanghai

MOQ : 1set

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 15 sets per month

Delivery Time : 1-10days

Packaging Details : wooden case, L2100*W750*H1720mm, 400KG

Speed : 50-150bottle/min

Labeling error : ＜±1mm

Voltage : 110V/220V,1phase

Application : Food,Medical,Beverage,Chemical,Commodity

Warranty : 4 years

Suitable for bottle : all size round bottle

After-sales service provided : Video technical support,Online support

suitable for label : all size self adhesive label

Contact Now

YM510 Automatic Fast Wrap Around Label Machine Glass Plactic Sticker Labeling Machine

Introduce and Function:

It is widely used in food, beverages, cosmetics and daily chemical industries. The labeling machine is equiped with PLC&HMI control panel,which help you adjustment easily. It can be used for round bottles/cans/jars/any cylinder products. It is made as high quality material and imported machine part.

1, Stainless steel 304 frame construction and components are standard.

2, Precision servo motor drive on labeling head feeding label.

3, Machine printer is available for choose.

4, Labeling speed is synchronized with conveyor speed to ensure quality labelling automaticaly.

No.	Item	Data
1	Label width(height)	10-180mm, if more big label, customized
2	Label length	10-300mm, if more big label, customized
3	Bottle diameter	Below 120mm, if more big bottle, customized
4	Capacity	20-150 bottles/min
5	Labeling error	＜ ±1mm
6	Conveyor speed	0-28m/min
7	Power supply	720W, 110V/220V, 50/60Hz, 1 phase
8	Machine size	L2000 * W700 * H1650 mm
9	Machine weight	300KG
10	Reel label Inner diameter	76mm
11	Reel label outer diameter	Max.360mm

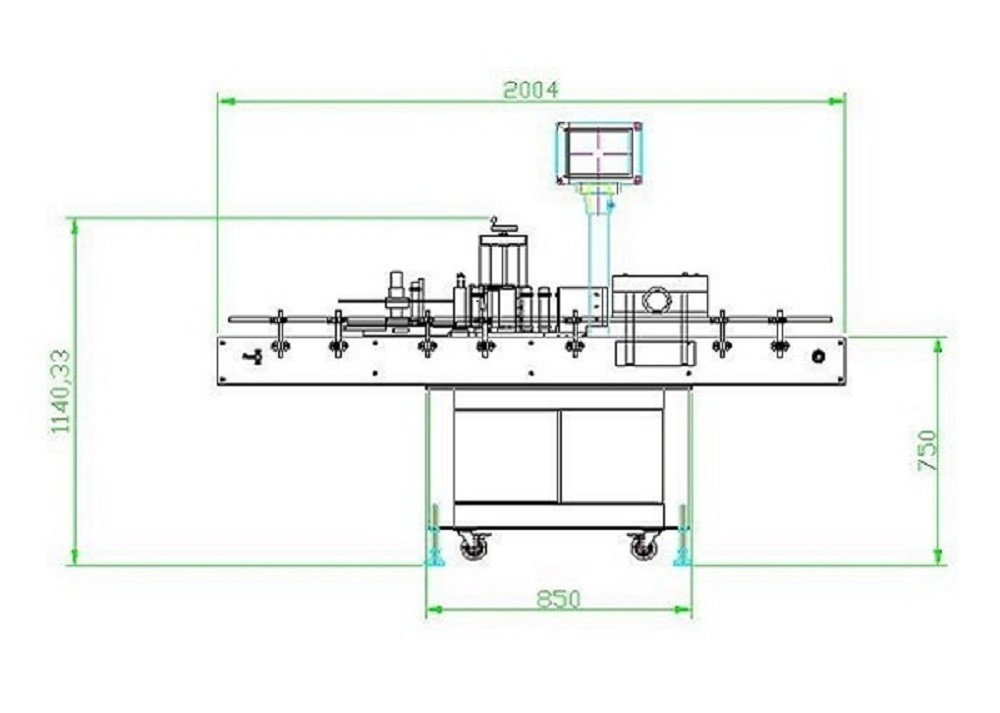

Machine Layout:

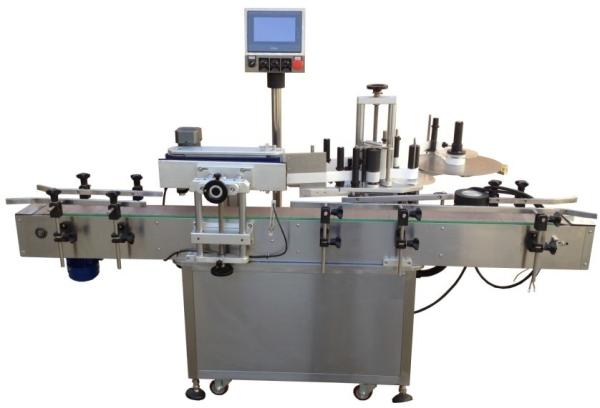

Fast Wrap Around Labeller Mineral Water Bottle Labeling Machine 110V

Touch screen

Siemens touch screen,Powerful, color touch screen control, Chinese and English optional operating interface, convenient and intuitive, powerful data memory function, can store multiple groups of labeling parameters, with production counting function,power saving function. Production number setting prompt function, parameter setting protection function, convenient production management, different product labeling switch one key to achieve, without repeated debugging, simple and fast; And has the perfect fault prompt and the help function.

Ribbon Printer

It can be equipped with ribbon printer, which can print production date and batch number on line, reduce the packaging
 process of bottle and improve production efficiency.

PLC control system

Adopt Japanese Mitsubishi PLC control system, a more stable performance, Keep the machine running steadily and long life.

Wrap around labeling device

Automatically detect the bottle, separate the bottle and stick label on bottle, suitable for more different size bottle and label.

Bottle Dispersing

The application is flexible, automatic bottle separating function ,can be used alone, can be connected with the production line .

High quality labeling head

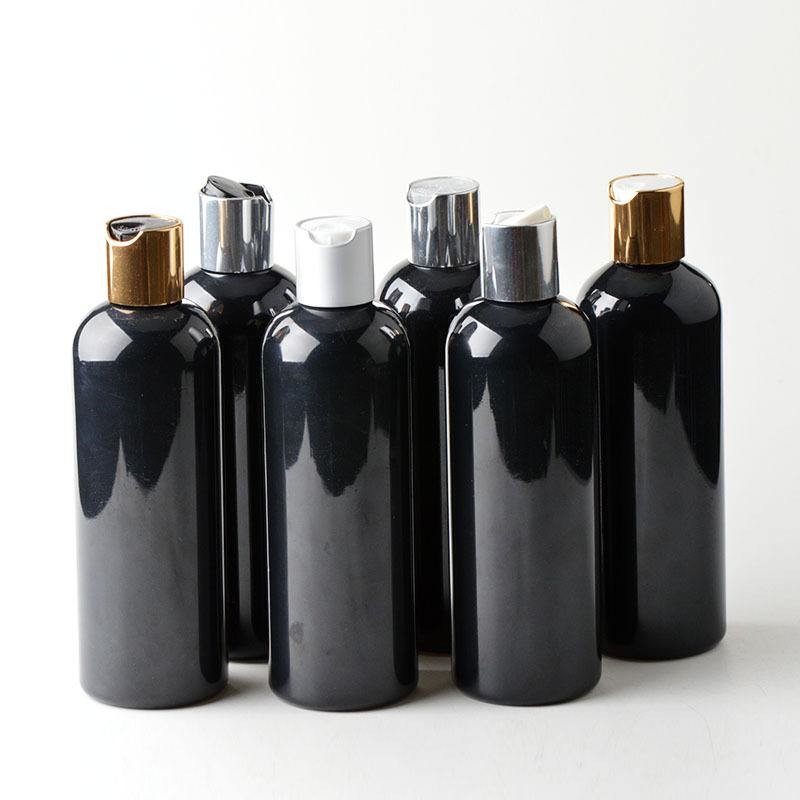

Applicaiton:
Type: Round bottle, cup, jar, can, tin.
 Material: Plastic, metal, paper, glass
